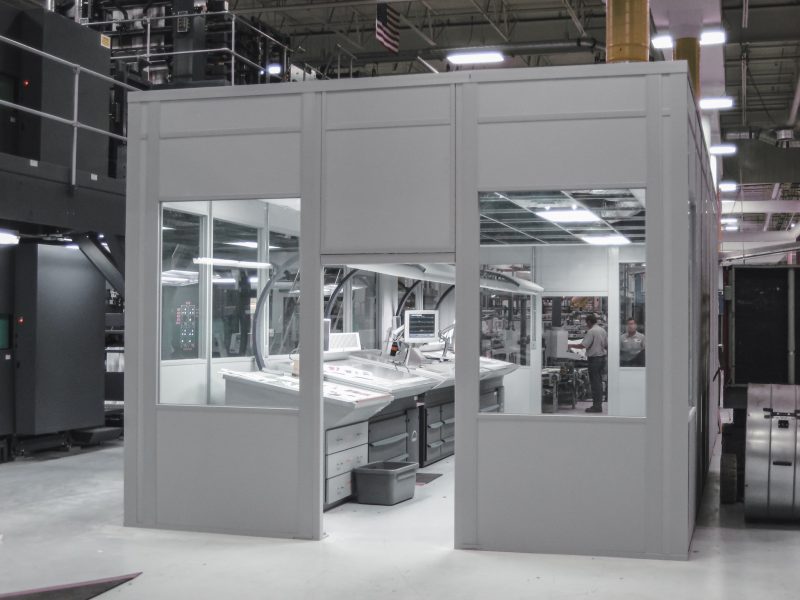

8’W x 8’L x 8’H Modular In-Plant office with HVAC & Electrical

$8,341.04

Building Notes:

8′ W X 8′ L SS3000-DL X 8′ H FOUR WALL, NON-LOAD BEARING IN-PLANT BUILDING WITH ELECTRICAL & HVAC



SKU: SS3000-DL, 8' Categories: ,

Building Notes:

8′ X 8′ SS3000-DL X 8′ TALL FOUR WALL, NON-LOAD BEARING IN-PLANT BUILDING.

SS3000 Wall System / Walls

SS3000-DL WALL SYSTEM 8′ TALL

Wall panels are 3″ thick sandwich type construction with 1/2″ vinyl covered gypsum board laminated to both sides of 2″ thick expanded polystyrene core. Panel carries a Class A flame spread rating when tested in accordance to ASTM E-2768.

SS3000 Wall System / Framework

SS3000 CORNER POST 8′ TALL

Doors / Standard

3068 20ga STEEL DOOR W/GLASS & LEVER LOCK Each door is equipped with 1 1/2 pair of 4 1/2″ x 4

1/2″ ball bearing hinges and a stainless steel ADA compliant lever lockset. The top half of the door shall be glazed with 1/4″ tempered safety glass, nominal 24″ x 25 1/2″.

Door & frame will be painted to match one of our standard wall colors: Khaki, Grey or White.

The door frame is 18-gauge steel designed to fit into the structural framework of the wall system.

Electrical (Field Wired) / Standard

125 AMP CB BOX W/8 SPACES

120V 20 AMP LIGHT SWITCH

2′ x 4′ T-8 LIGHT FIXTURE (NO LAMPS) 120V, 20 AMP, DUPLEX RECEPTACLE

Air Conditioners / A/C-Heat Units

HVAC, 9500 BTU COOL/11600 BTU HEAT-230V(AJEQ09DCF)Unit is commercial grade with electronic digital thermostat

and 5 year warranty on sealed refrigeration system.

Price includes wall cutout and unique support shelf .

DRAIN KIT FOR HVAC UNITS (#RAD4A1)

Grid Ceiling / Standard

ACOUSTICAL GRID CEILING 2′ x 4′

Steel Roof Deck / Roof Deck

STEEL ROOF DECK, 22ga. TYPE B

ROOF DECK RUBBER CLOSURES (ENDS OF DECK)

Lead Time: 3-6 WEEKS



Weight 2225.00 lbs
Shipping Dimensions 96 × 48 × 48 in
