Pallet Rack/Wire Mesh Decking/
48″ D x 46″ W Wire Mesh Deck 2500 Lbs. Capacity Flared Support
$34.14
48″ deep x 46″ wide

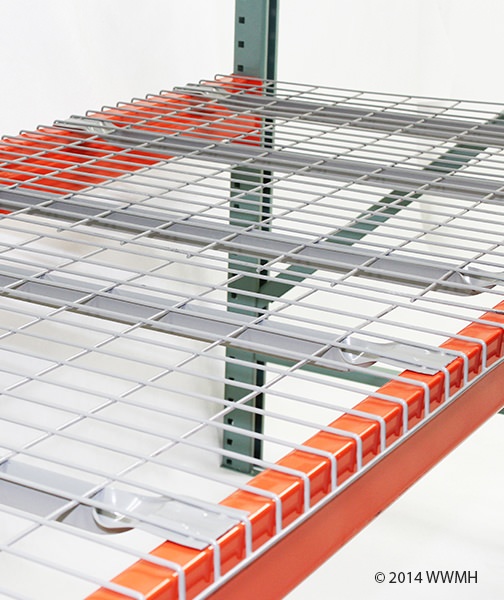

Optimize your warehouse storage with our durable 48″ deep by 46″ wide wire mesh deck, designed to support up to 2500 lbs. uniformly distributed load (UDL). Constructed with 6-gauge wire and 2.5″ x 4″ mesh spacing, this deck features three flared supports and a 1.5″ waterfall front for added strength and stability.
The powder-coated gray finish provides excellent corrosion resistance, ensuring long-lasting performance in industrial environments. Ideal for pallet rack systems, this wire mesh deck enhances ventilation and safety while maintaining heavy-duty load capacity.
Contact TP Supply Company today at 877-302-2337 or email sales@tpsupplyco.com to order or learn more about our wire mesh decking solutions.
Frequently Asked Questions
What is the weight capacity of the 48″ x 46″ wire mesh deck?
This wire mesh deck supports up to 2500 lbs. with a uniformly distributed load.
What materials are used in this wire mesh deck?
It is constructed from 6-gauge steel wire with a powder-coated gray finish for durability and corrosion resistance.
What are the dimensions of the mesh openings?
The mesh openings measure 2.5″ by 4″ to provide optimal ventilation and safety.

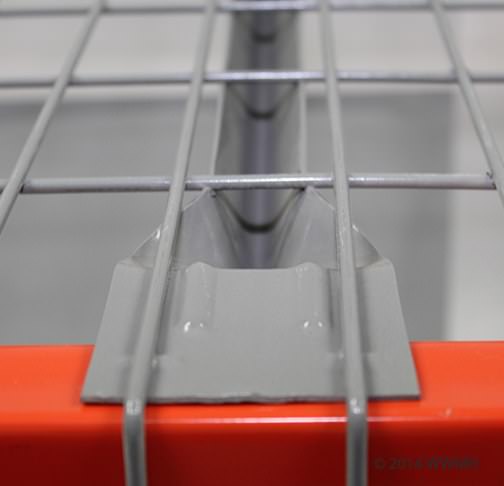

What are flared supports and why are they important?
Flared supports increase the deck’s strength and stability by providing additional reinforcement at key load points.
| Weight | 20.6 lbs |
|---|---|
| Shipping Dimensions | 48 × 46 × 2.5 in |
| Capacity | |
| Location | 17701, 27030, 28092, 32824, 60446, 75228, 77503, 92408, 98421 |
| Depth | |
| Height | |
| Width | |
| Brand | |
| Condition | |
| Factory Warranty |
